Brand: Camnex

Features:

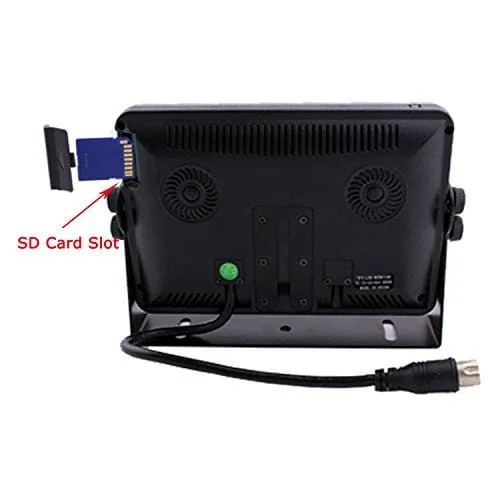

• Built-in DVR function. Hight-definition Video Record Function. The record files been stored in SD card, maximum 64G, support date & time setting of the video.
• Built-in quad / Split screen, able to show 4 camera views at one time. Connect up to 5 cameras.
• AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.

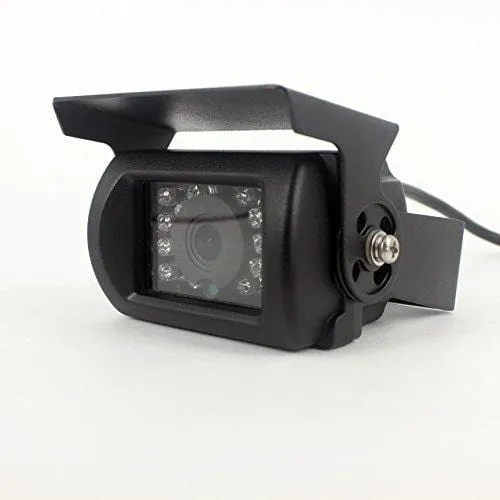

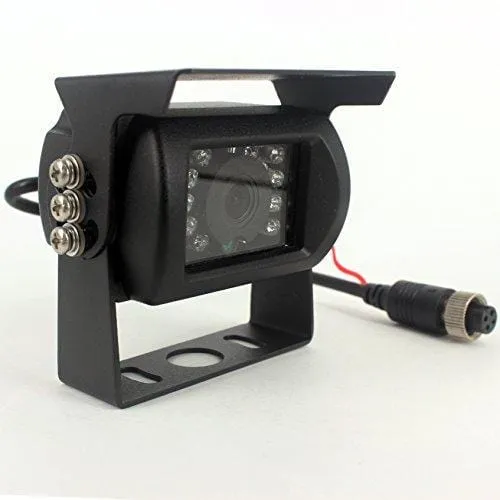

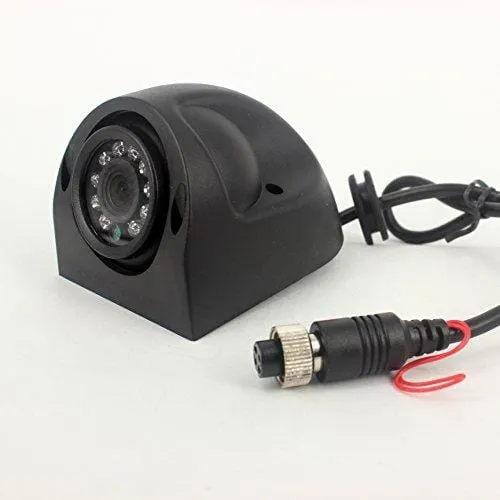

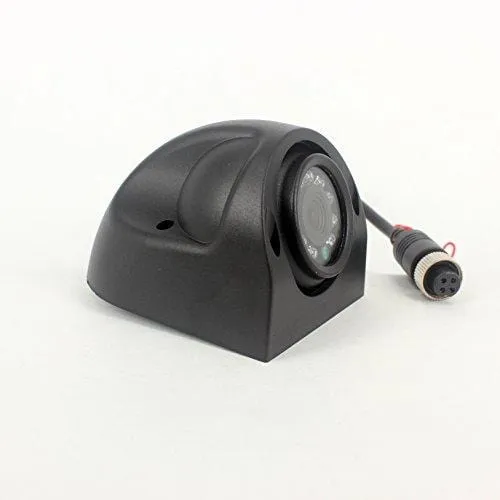

• Color CCD Camera. IR Night Vision, backup camera 18 built-in IR LED. Side camera has 10 IR LED. night vision distance up to 12 meters.
• 12V-24V DC power input range to fit most of the medium to large vehicles in production.

Manufacturer Parts Warranty Description: Replacement parts provided free the first year.

Publisher: Guangzhou Camnex Electronics Co., Ltd.

Details:

Free Shipping to United States, UK, Canada, Mexico and Australia, Fast Shipping via DHL or Other express to Worldwide.

Features:

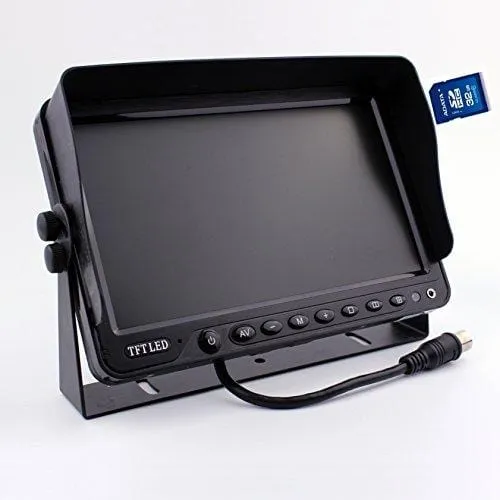

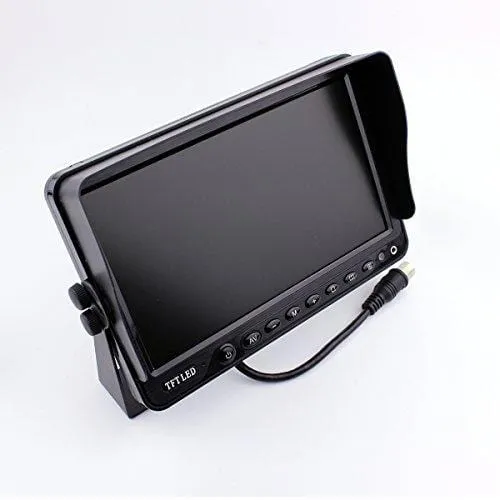

- High Definition Digital Colour LCD wide screen video monitor, 800 x 480 pixels.
- Built-in DVR recorder. DVR can re record on the same SD card in a loop. Tmaximum 64G.
- All video files are AVI format. Each camera has a separate video file.
- Built-in quad / Split screen, able to show 4 camera views at one time.
- AV1/AV2/AV3/AV4 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.
- The monitor support 3-ways audio input(AV1, AV2 and AV3). It need cameras have audio output to AV1~AV3 channel. Audio will been recorded to SD card.
- Although monitor supports 5 cameras input, but DVR only records AV1, AV2, AV3 and AV4 images, it can not record AV5 image.
-The monitor do not build-in speaker as default, if you need it, please contact us.
- All DVR functions are set via the remote control.

How to Install this System:

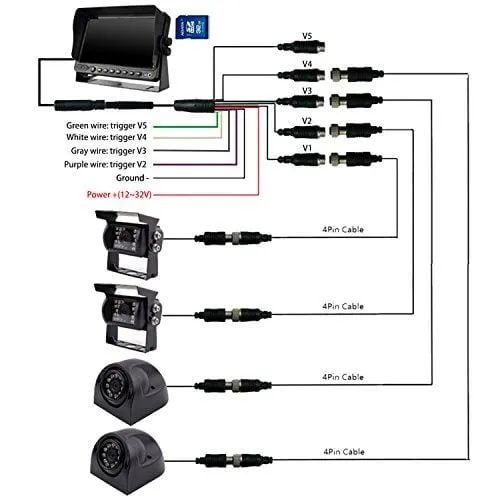

The power cable of monitor has 6 wires, their definition as follows:
Red wire: 12-32V
Black wire: GND
Green wire: V5 trigger wire
Purple wire: V2 trigger wire
Gray wire: V3 trigger wire
White wire: V4 trigger wire

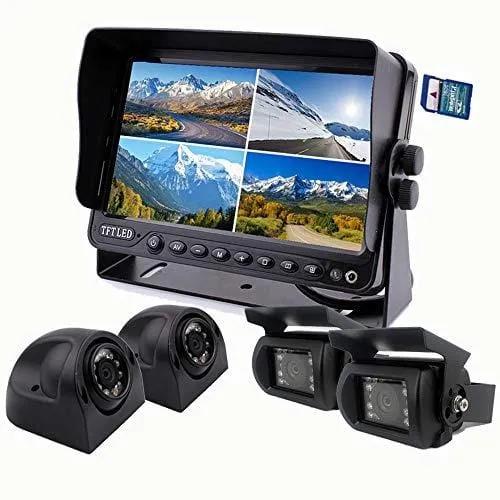

Package List:

- 9" Monitor x 1
- Side Camera x 2
- Backup Camera x2
- 4PIN 15m Cable x4

SD Card Is Not Included

UPC: 680491420480

EAN: 0680491420480

Package Dimensions: 14.3 x 10.4 x 7.6 inches
