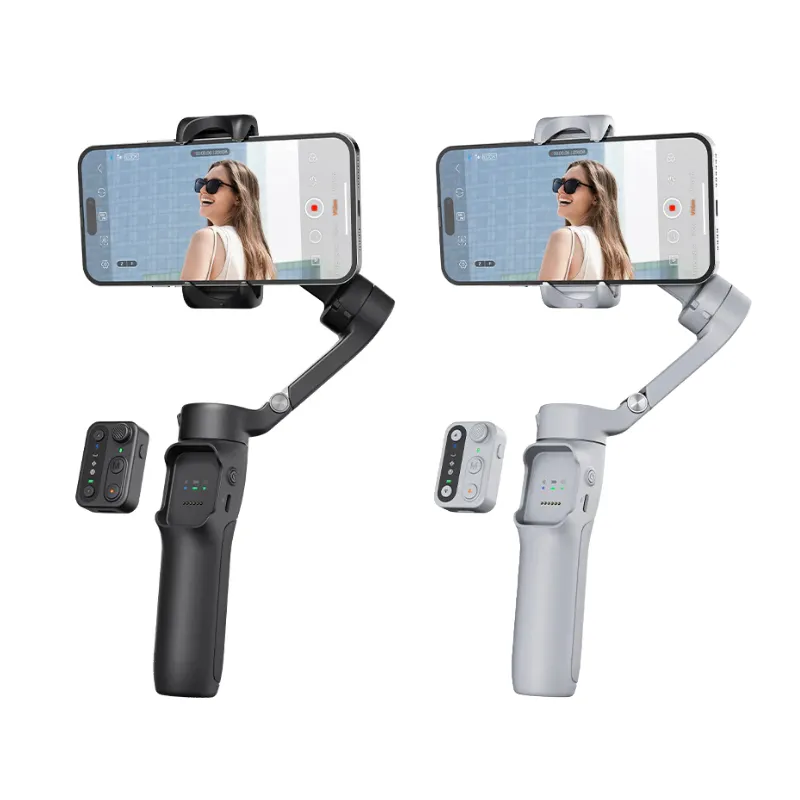

• Color: Black/Gray
• Weight: 361g (±5g)
• Material: High-performance composite material
• Unfolded Size: 128 x 75 x 275.5mm (5.04 x 2.95 x 10.85 inches)

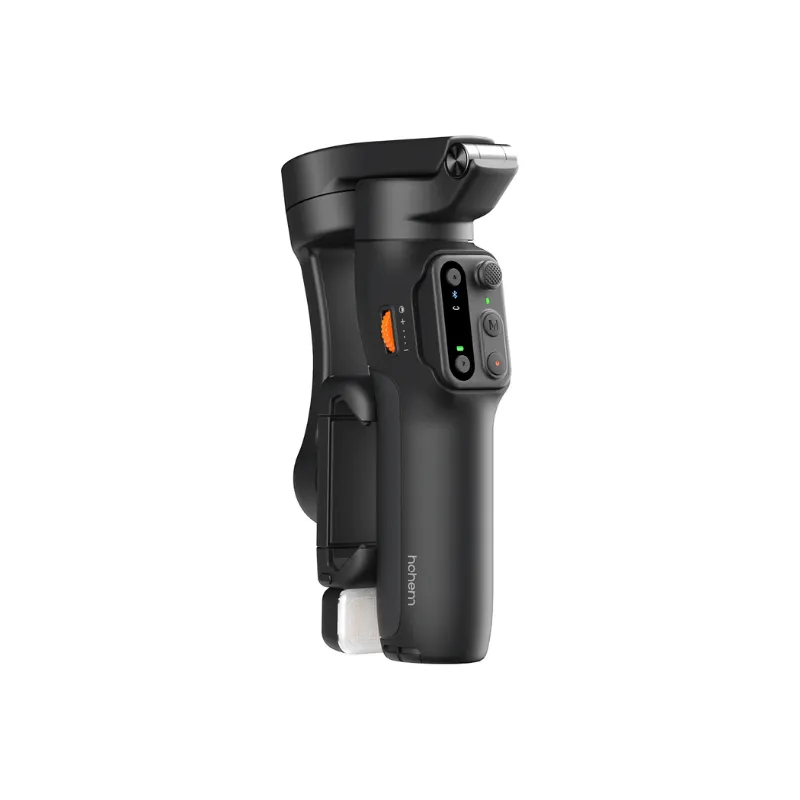

• Folded Size: 98 x 44 x 160.5mm (3.86 x 1.73 x 6.32 inches)
• Payload: 300g
• Mobile Phone Width Compatibility: 58mm ~ 98mm
• AI Vision Sensor: Not available
• Detachable Remote: Yes
• Remote Range: 10m (32.81ft)
• Magnetic Fill Light: Not available
• Built-in Extension Rod: Not available
• Built-in Tripod: Not available
• Battery: 7.4V / 1100mAh
• Reverse Charging: Not available
• Charging Time: 2 hours (5V-2A)
• Operation Time: Approx. 11 hours (Balanced and stationary)
• Data sourced from: Hohem Laboratory
• Controllable Angle:
  • Pan: -120° to 210°
  • Roll: -195° to 135°
  • Tilt: -35° to 45°
• Gimbal Working Modes:
  • Pan Follow (PF)
  • Pan and Tilt Follow (PTF)
  • All Lock (L)
  • Point of View (POV)
• Landscape/Portrait Switch: Yes
• Auto Inception: Yes

App Features

• Video Tutorials & User Manual
• AI Tracking (Face Tracking Object Tracking)
• Gesture Control
• Beauty & Filters
• Creative Studio (Popular scenes with shooting instructions)
• Moment Templates (Dolly Zoom, Panorama, Inception, Timelapse, etc.)
• Gimbal Parameter Settings
• Camera Parameter Settings
• Firmware Update

Power and Protection

• Power Consumption: 0.8W (Approx., measured under ideal conditions)
• Motor Protection: The gimbal will automatically shut down in case of improper operation to protect the motor.
• Working Temperature: -10 ~ 45°C
• Expansion Port: 1/4"-20 Screw Hole

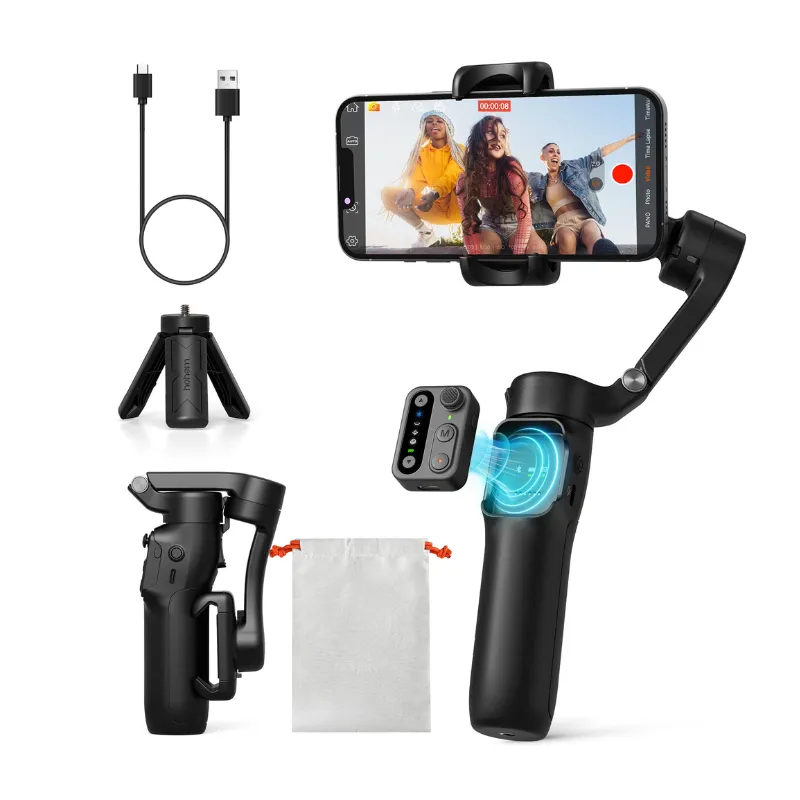

Standard Package Contents

• Gimbal x1
• Remote Controller x1
• Tripod x1
• Storage Pouch x1
• Type-C Charging Cable x1
• Quick Start Guide x1
• Warranty Card x1

Button Functions

• Power Button:
  • Long press: Power on/off
  • Press twice: Enter/Exit standby mode
• Mode Button:
  • Press once: Switch working modes
  • Press twice: Switch between landscape and portrait mode
  • Press three times: Auto 180° roll rotation
  • Press five times: Enter auto calibration
• Shutter Button:
  • Press once: Take a photo or start/stop recording (requires Bluetooth connection)
  • Press twice: Switch between photo/video mode
  • Press three times: Switch between front/rear cameras
  • Long press: Remote control power on/off
• Trigger/Function Button:
  • Long press: Enter All Lock Mode (release to exit)
  • Press twice: Recenter the gimbal
  • Press three times: Forward-facing/Backward-facing switch
• Side Wheel:
  • Scroll up: Zoom in (requires Bluetooth connection)
  • Scroll down: Zoom out (requires Bluetooth connection)
• Joystick:
  • Push up/down: Tilt up/down
  • Push left/right: Pan left/right
  • Press twice: Switch the function of Adjustment Button (Zoom/Roll)
• Adjustment Button:
  • Long press: Control zoom/roll rotation

Notes

• Features require Bluetooth connection.
• These functionalities can be used via the Hohem Joy app after Bluetooth connection.
• The remote control automatically pairs with the gimbal when powered on.
