Product Details
＋
TOMAR’s RECT 14 LStick Series Warning LED Light Bar is a efficent tool in warning other drivers of upcoming hazards. With a built-in controller, these self-contained, fully waterproof slim-line modular LED light bars provide powerful warning patterns.
Available in any combination of amber, red, and blue; and with a black or silver anodized aluminum housing, they can be customized to the vehicle they are mounted on. From 9" to 47.25”, and with a simple, singular trigger wire control-cable available up to 40’, there is no better option for a rear-mounted, powerful light-stick in such an attractive package.
NOTE:
THIS LSTICK DOES NOT INCLUDE TRAFFIC DIRECTION
KEY FEATURES
- Easy, two screw lamp replacement
- Built in flasher with multiple user selectable flash patterns
- Internal/external mounting
- LED’s available in amber, blue, red and white
- Available in polished aluminum or black housing

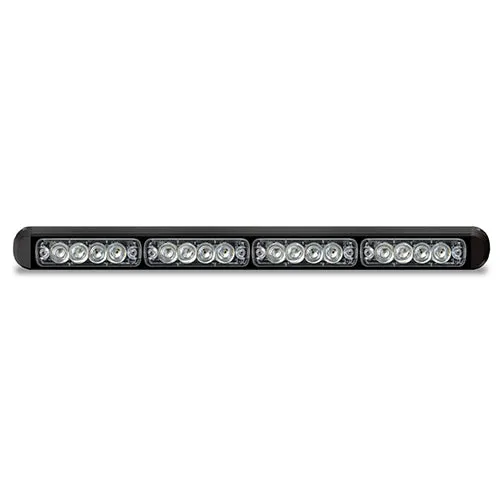

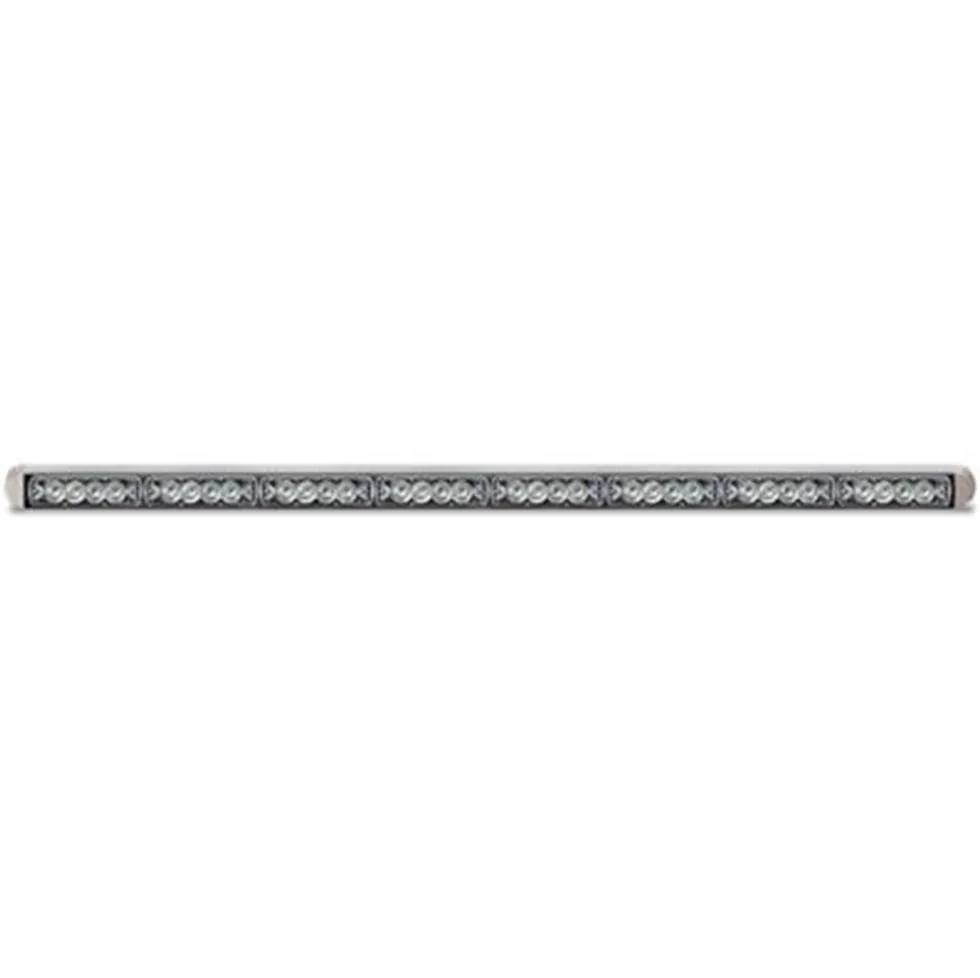

R14 L-Stick lengths
1.75″ high x 1.75″ deep

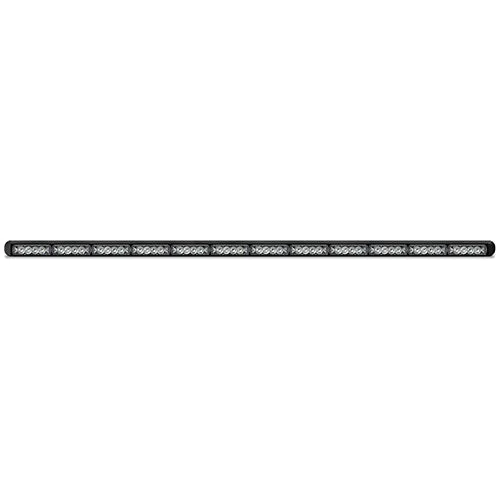

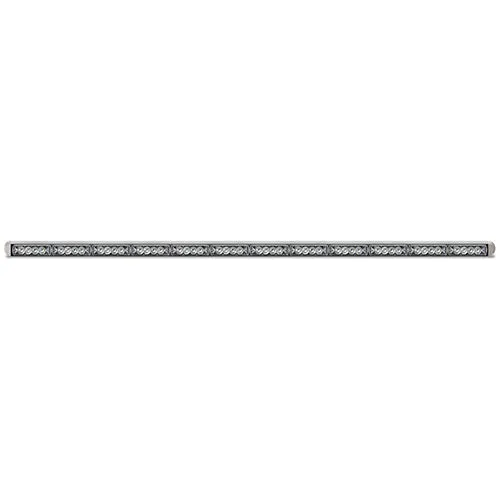

- 12 lamp modules: 57″

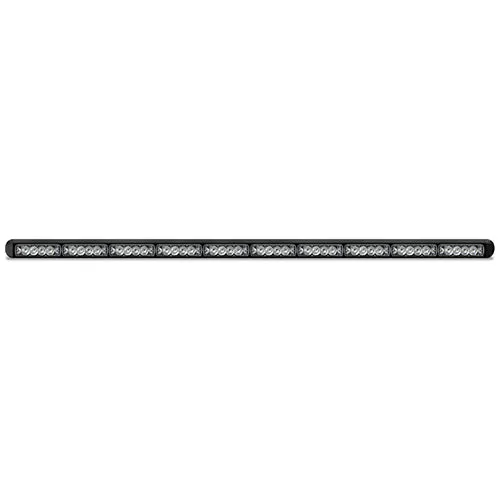

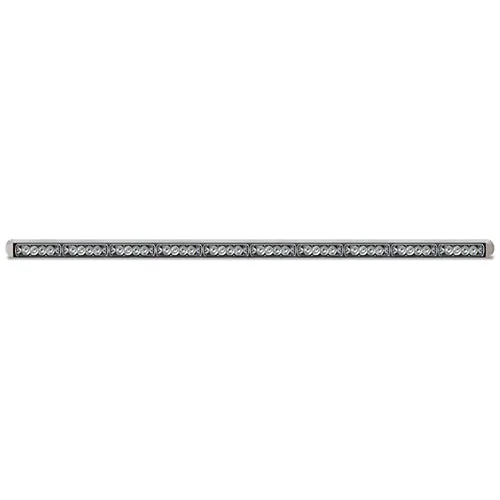

- 10 lamp modules: 47.75″

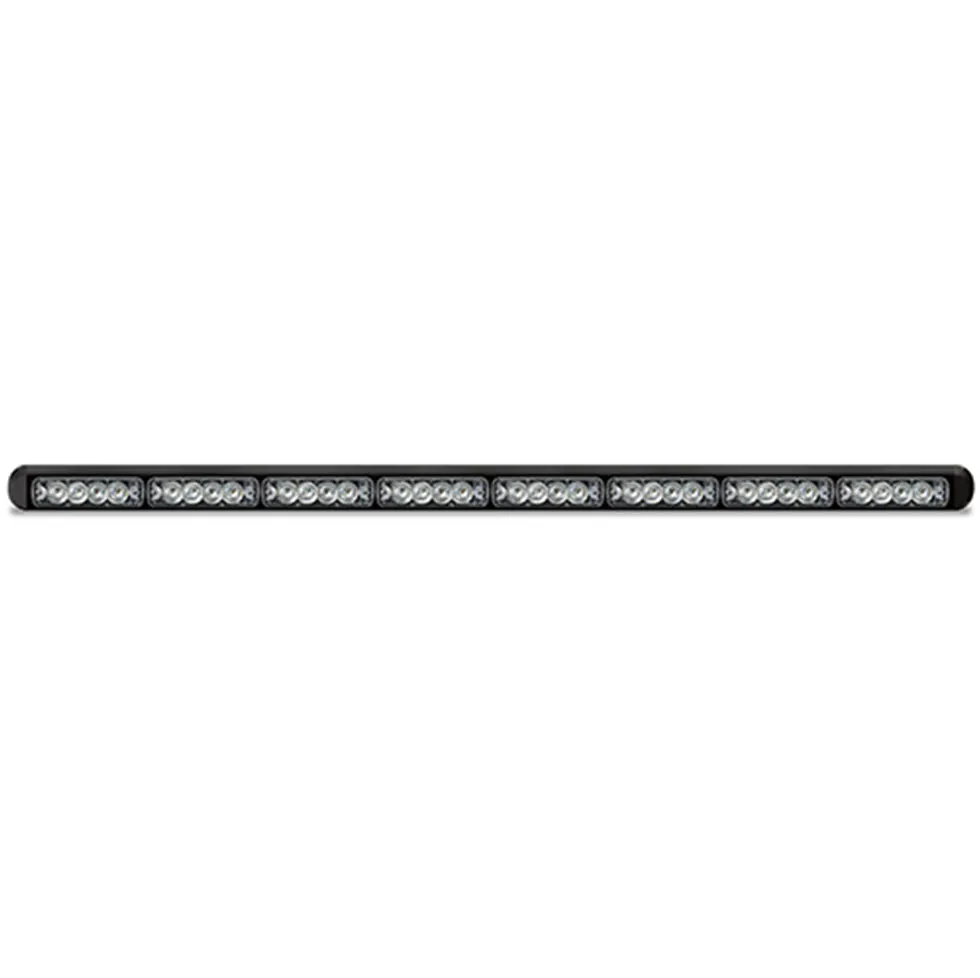

- 8 lamp modules: 38.5″

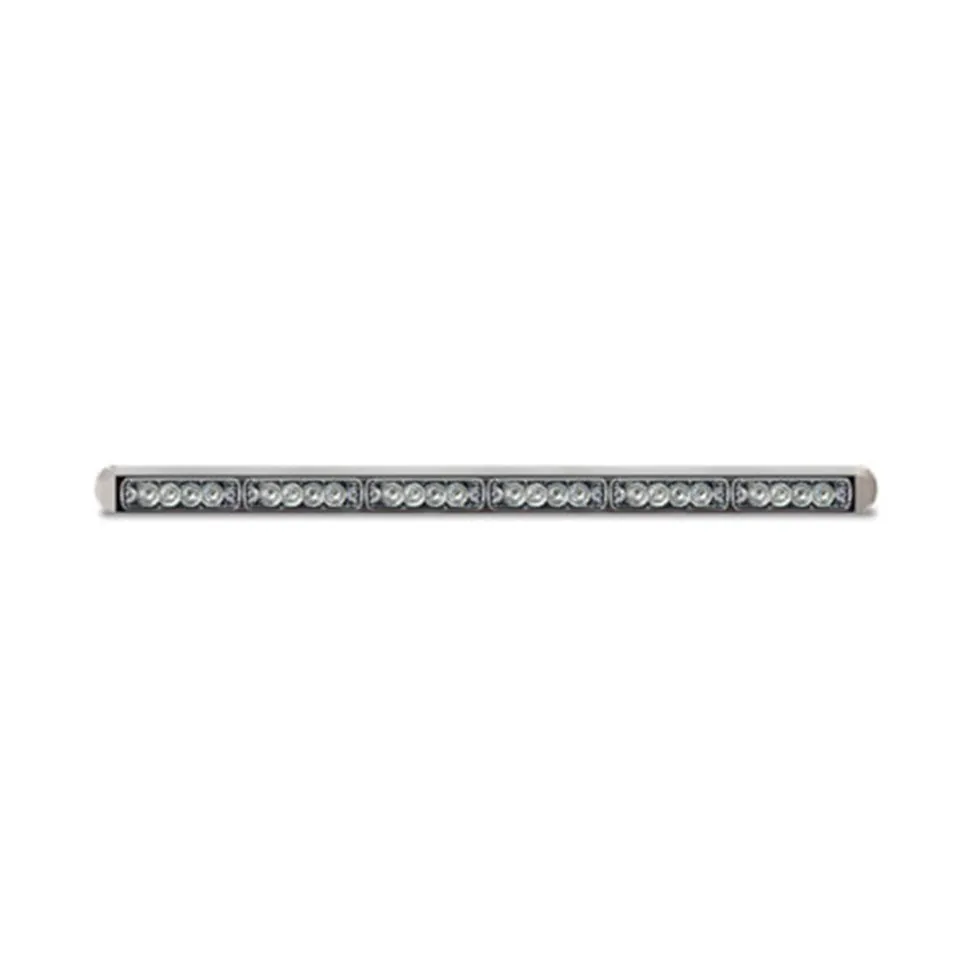

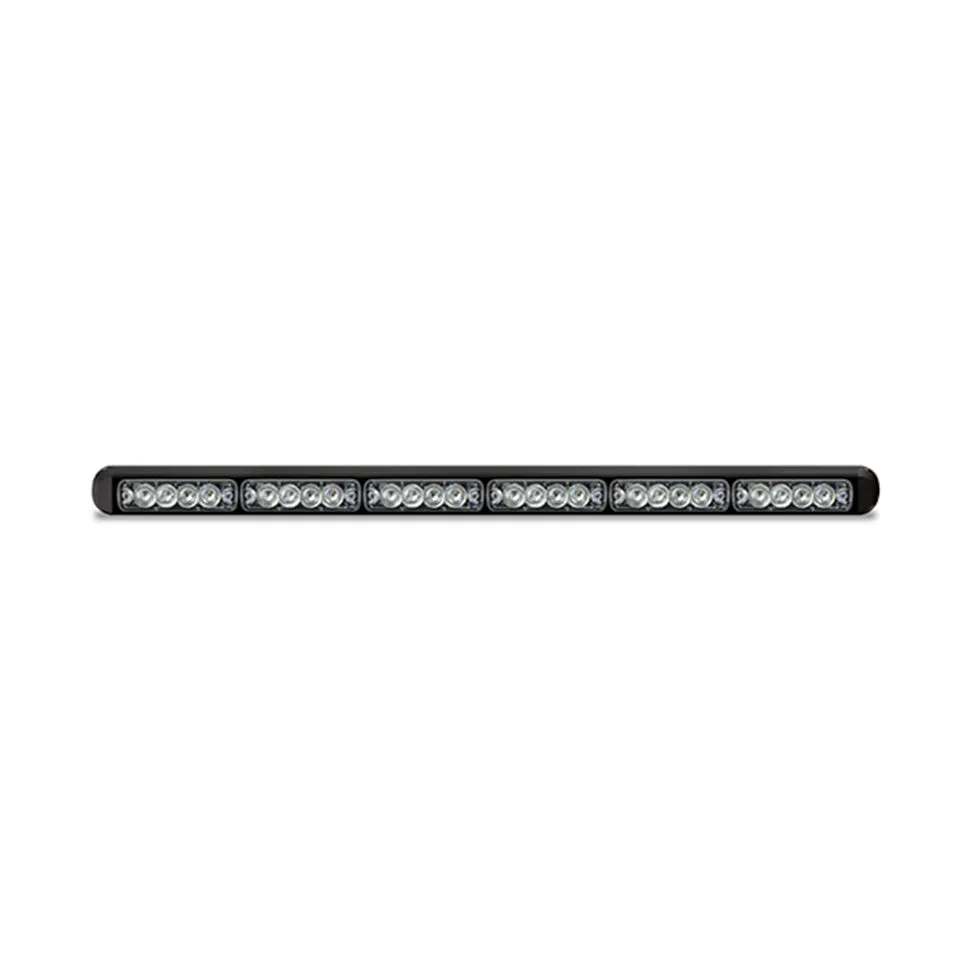

- 6 lamp modules: 29.25″
- 4 lamp modules: 20″

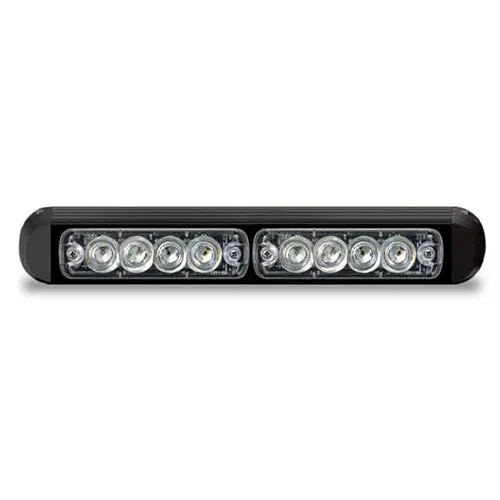

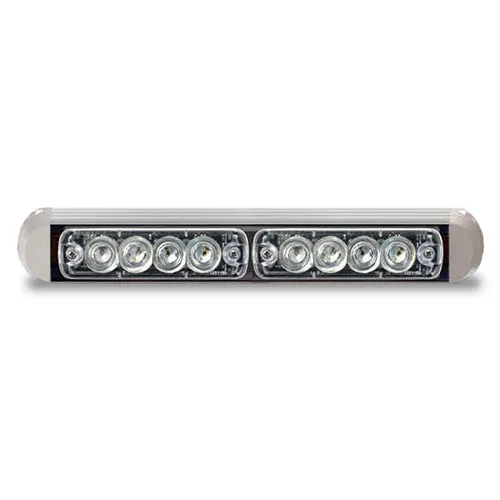

- 2 lamp modules: 11″
SPECS
- Operating Temperature Range: -55°C to 65°C
- Current Draw: 265 mA average per R14 module in Neobe flash pattern
- Input Voltage: 12 VDC
AMP DRAW at 12.8VDC
- LSTICK-14TD6 3.30 Amps Max
- LSTICK-14TD8 4.40 Amps Max
- LSTICK-14TD10 5.5 Amps Max
- LSTICK-14TD12 6.6 Amps Max
Wiring Details
- Red: 12Vdc
- Black: Ground
- Orange: Warning Mode 1
- Blue: Warning Mode 2
- Orange & Blue: Warning Mode 3
- Red/White: Left Arrow
- Brown/White: Right Arrow
- Red/Wht & Brn/Wht: Center Out
- Green: Intensity Control
- Brown: Steady Burn

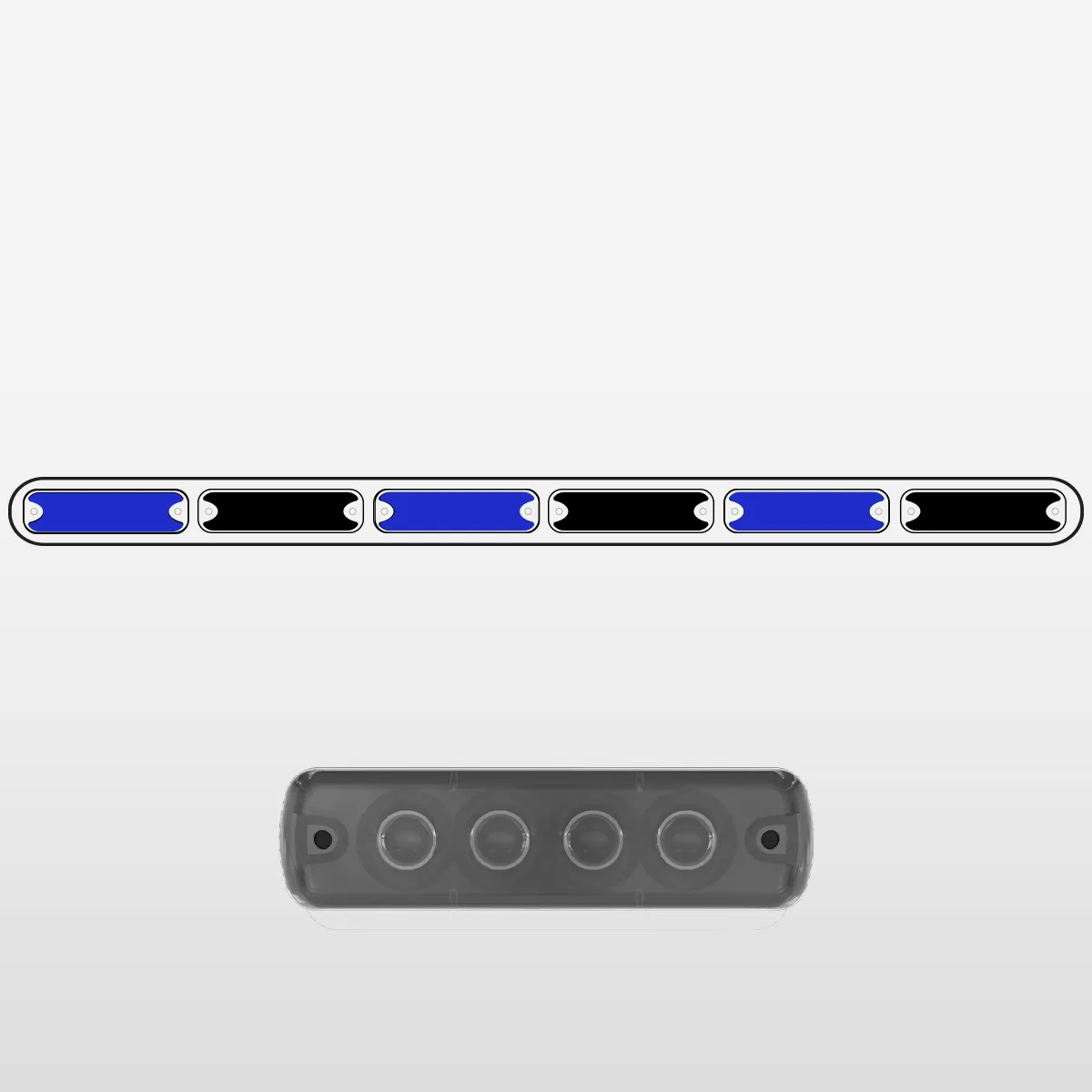

Flash Patterns
Flash Patterns, Warning Modes (All Versions)
- OFF
- COMBINATION ** DEFAULT SCROLL FLASH
- INBOARD OUTBOARD
- LEFT RIGHT
- ALTERNATE
- RANDOM
- SINGLE OUTBOARD
- DOUBLE OUTBOARD
- SINGLE INBOARD
- DOUBLE INBOARD
- TRIPLE INBOARD (not available on 6 lamp versions)
- SWEEP
Flash Rates
- SINGLE FLASH
- DOUBLE FLASH
- NEOBE FLASH
- SCROLL FLASH WARNING PATTERNS
