Product Details

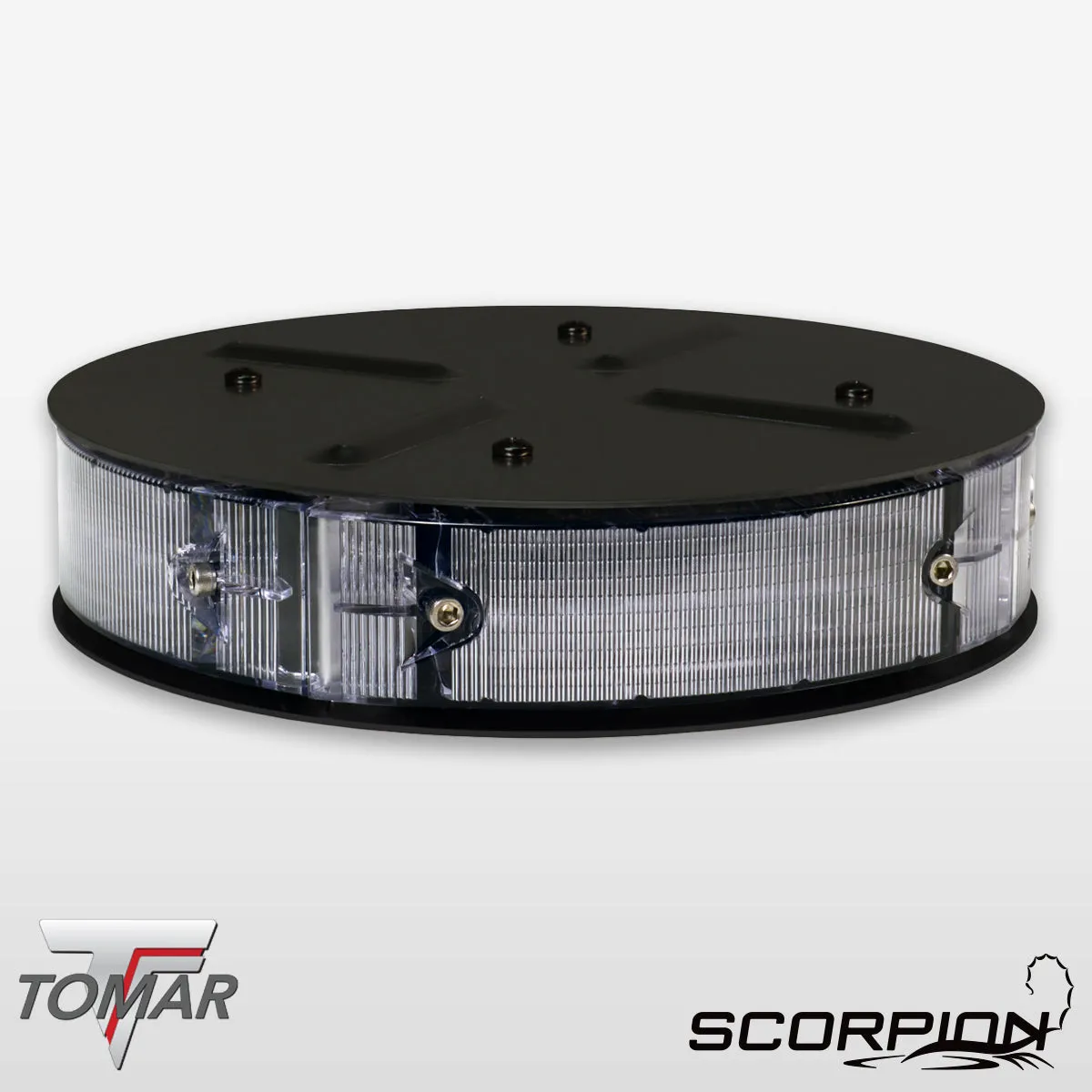

From a powerful light-bar comes a powerful Beacon. Utilizing TOMAR’s patented hermetically sealed Scorpion modules and our Clear Vision Optics, the TOMAR Scorpion Beacon Single Color LED Light is unmatched in its rugged, reliable, and extremely powerful performance.

Built with a silver or black aluminum housing, 6-LED or 12-LED modules, the Scorpion Beacon can be customized to fit your build and budget. No other Beacon is built like this, because no one else can do what TOMAR can.

KEY FEATURES

  • Easy maintenance and lamp replacement using (2) hex-head screws and waterproof connector
  • Hermetically sealed lamp modules using TOMAR Patented Linear Vibration Welding
  • Potted controller and waterproof wiring standard
  • Modules available in 6 or 12-LED single color
  • 1/2" inch female pipe mount, flat percent mount, or magnetic mount with cigar plug available

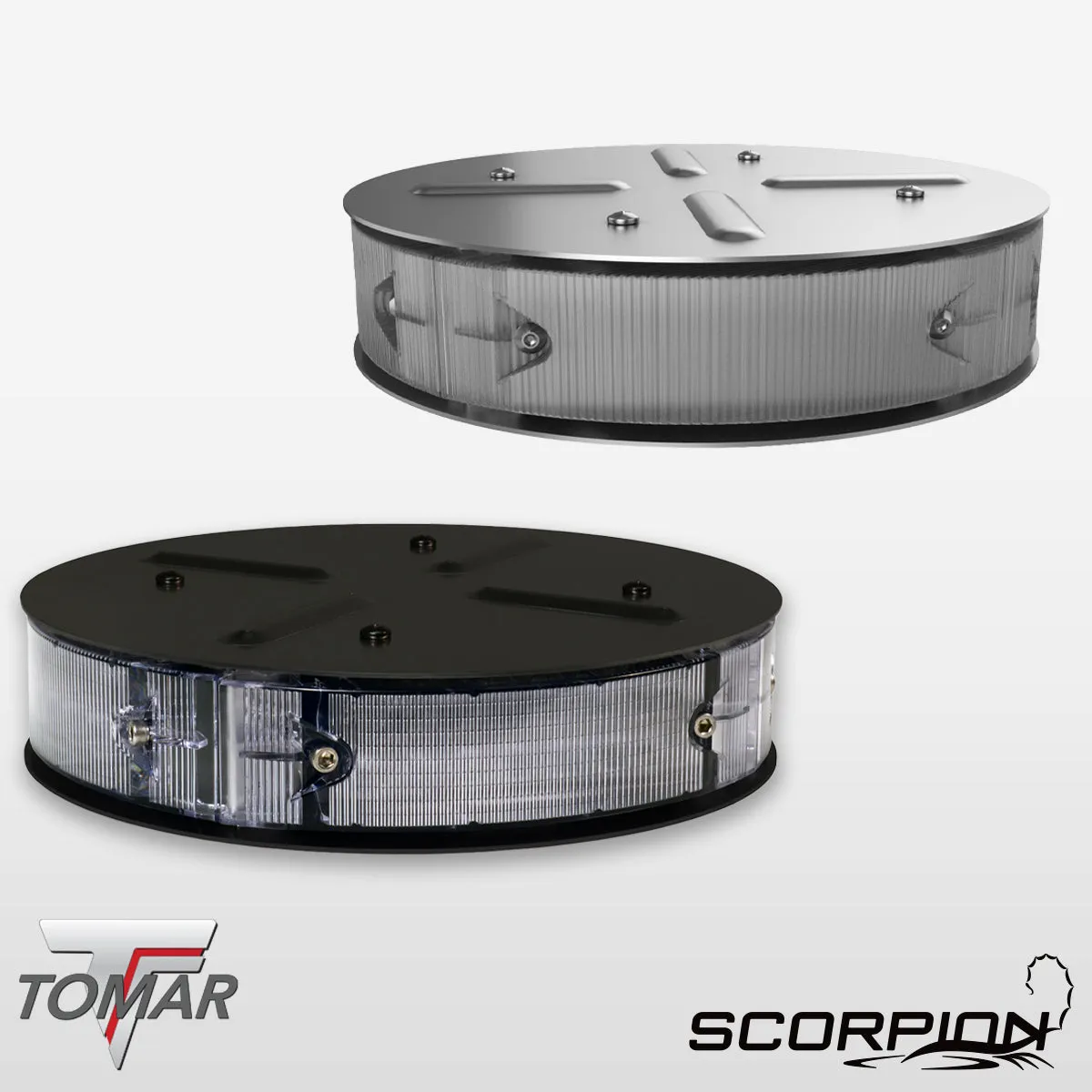

  • Available in clear or black anodize finish over aluminum chassis
  • 5 Year TOMAR Warranty
  • Approvals: SAE J595 Class 1; SAE J845 Class 1; SAE J2498; CCR Title 13
  • IP68 and IP69K Intrusion Rating

Wiring Details

  • Red: 12Vdc
  • Black: Ground
  • Orange: Warning Mode 1
  • Blue: Warning Mode 2
  • Orange & Blue: Warning Mode 3
  • Red/White: Alt Mode 1*
  • Brown/White: Alt Mode 2*
  • Red/Wht & Brn/Wht: Alt Mode 3*
  • Green: Intensity Control
  • Brown: Steady Burn

SPECS

  • Dimensions: 9.63” dia. x 2.35” high – (224.6mm dia x 56.7mm high)
  • Amp Draw (@12.8VDC): 2.86 Amps (Both Colors Flashing – 100% Duty Cycle)
  • Operating Environment:  -40°C – 65°C

Product Options

  • 6-LED (Standard Power)
  • 12-LED (Hig Power)

NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute Contributed to Each Zone

Lamp Color Single Double Neobe
Amber 400,690 200,345 280,483
Blue 402,410 201,205 281,687
Red 646,910 323,455 452,837
White 1,048,100 524,050 733,670
