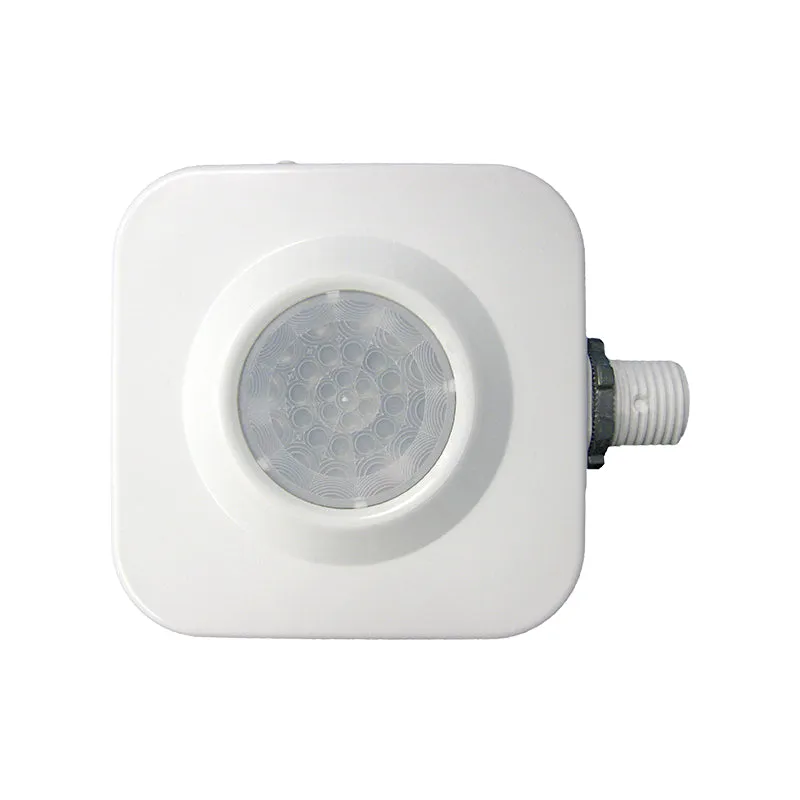

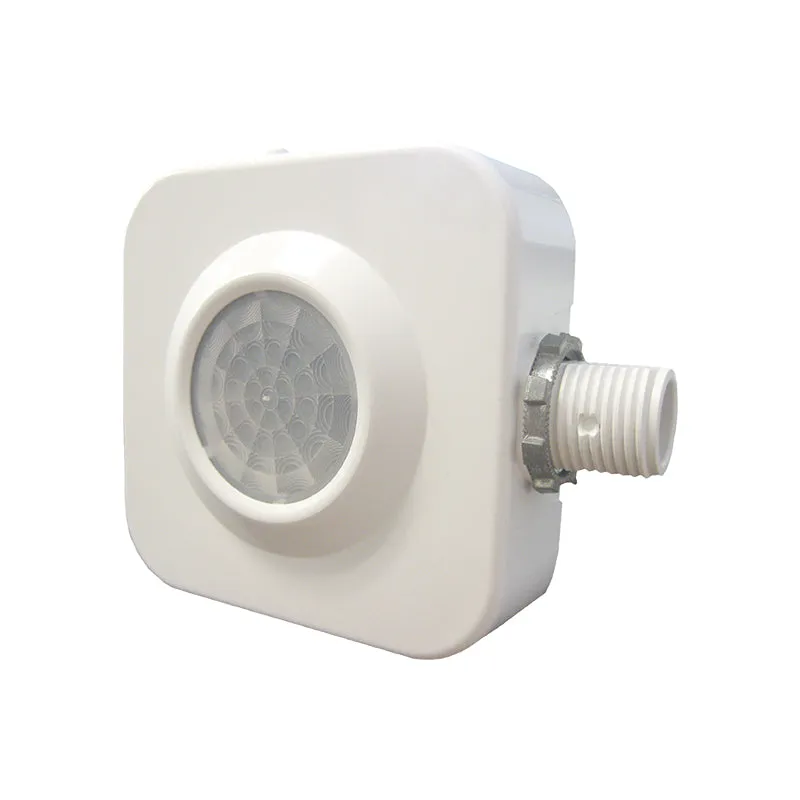

Designed for mounting heights of up to 45 ft (13.72 m), the CMRB 6 High Bay 360º sensor provides Passive Infrared (PIR) occupancy detection over a 15-20 ft (4.57-6.10 m) radial coverage pattern that overlaps the areas lit by a typical high bay fixture. This line voltage sensor switches loads directly without the need for a power pack.

Features

• Type: High Bay 360°
• Voltage: 120/277VAC
• 100% Digital PIR Detection, Excellent RF Immunity
• 360º Coverage Pattern
• Self-Contained Relay, No Power Pack Needed
• Compatible w/ Electronic & Magnetic Ballasts, CFLs, LED, & Incandescents
• No Minimum Load Requirements
• Interchangeable Hot & Load Wires, Impossible to Wire Backwards
• Push-Button Programmable
• Non-Volatile Settings Memory
• Adjustable Time Delays
• No Field Calibration or Sensitivity Adjustments Required
• Convenient Test Mode
• 100 hr Lamp Burn-in Timer
