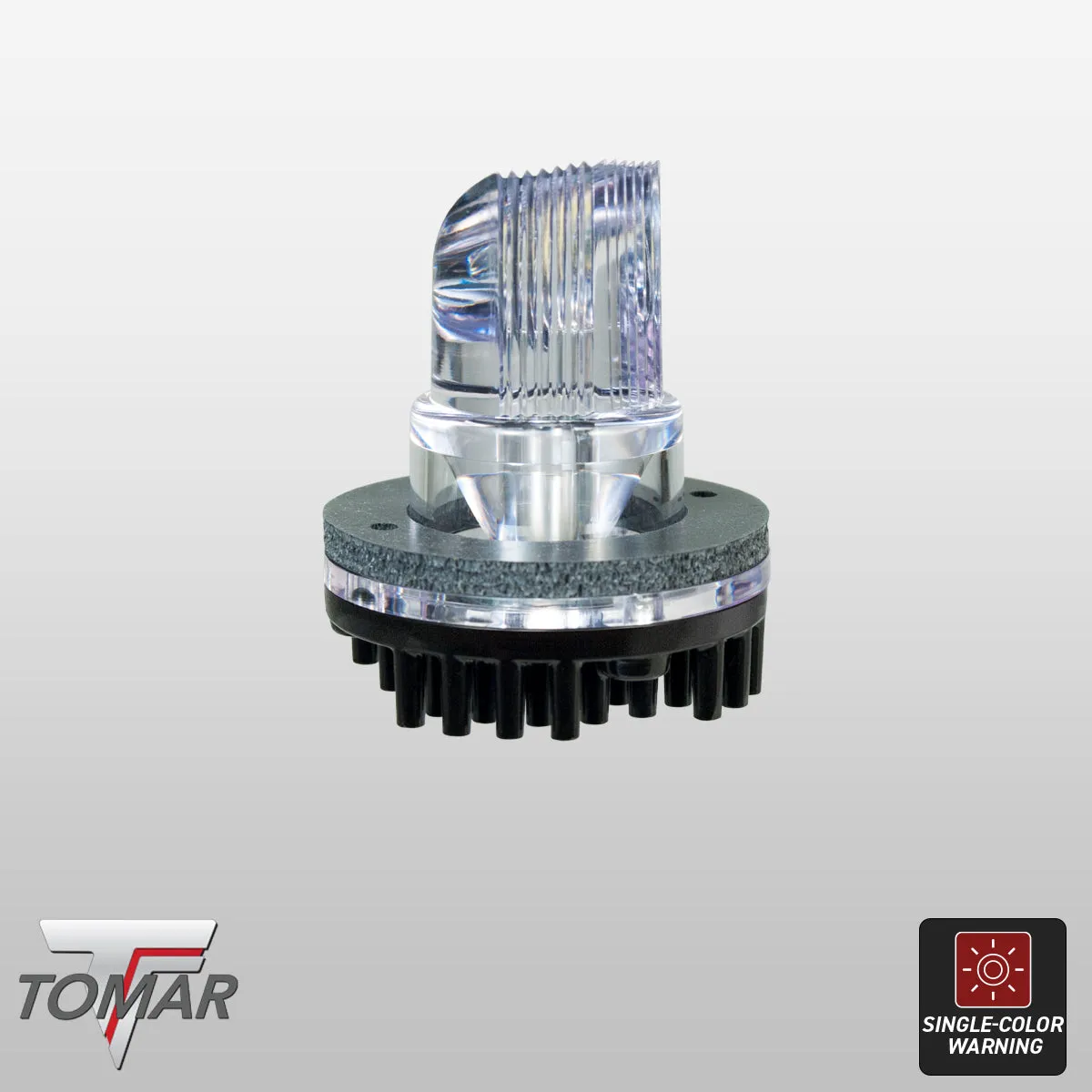

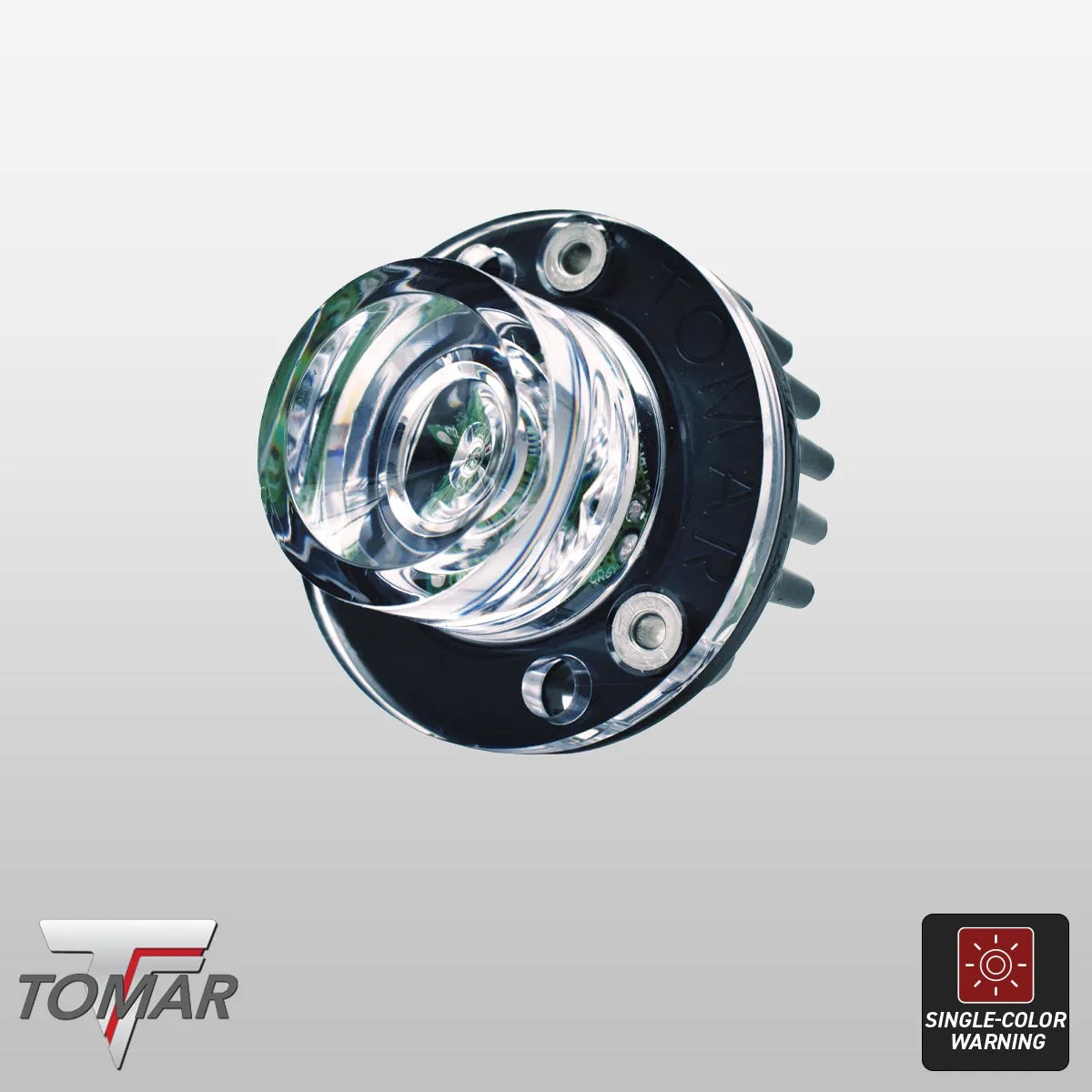

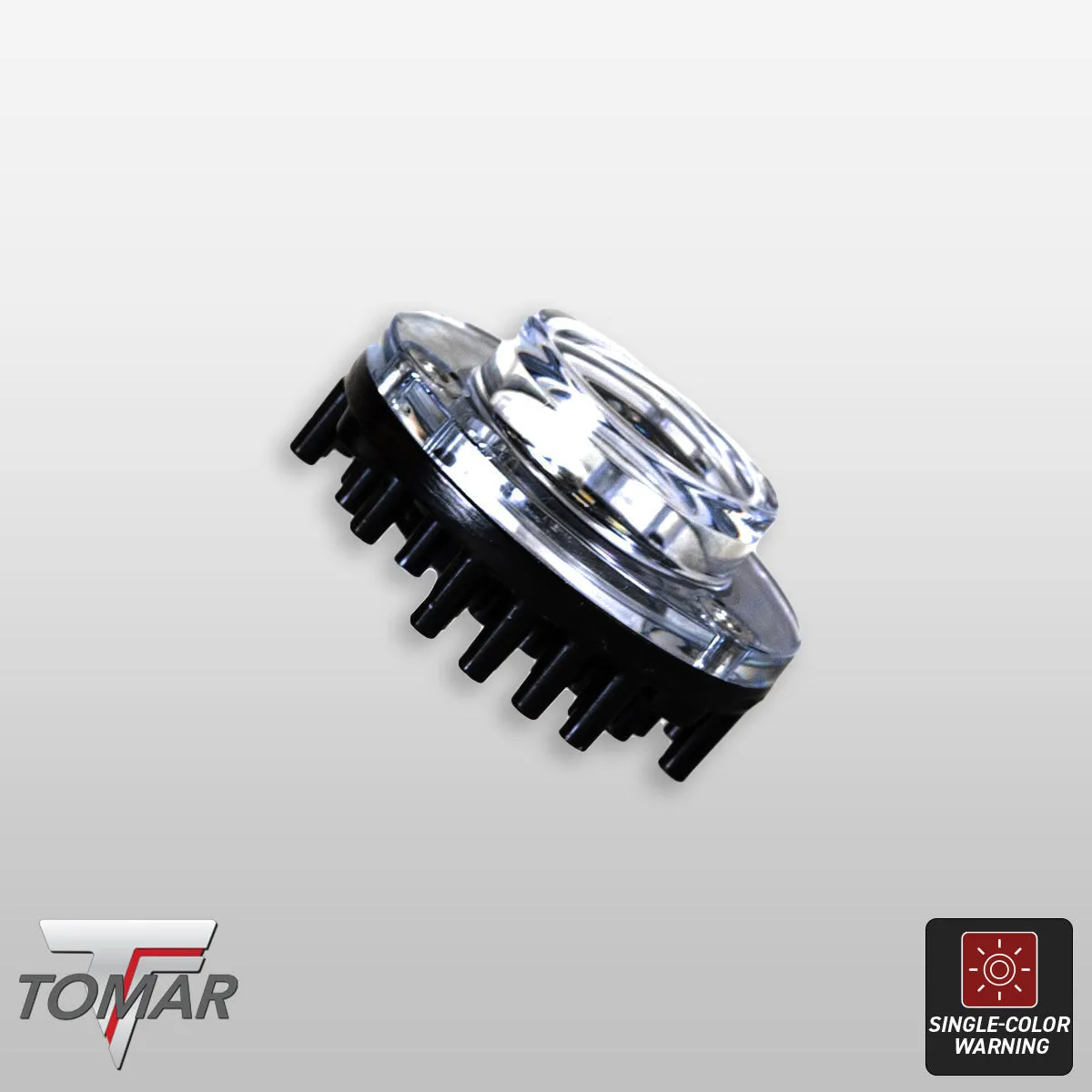

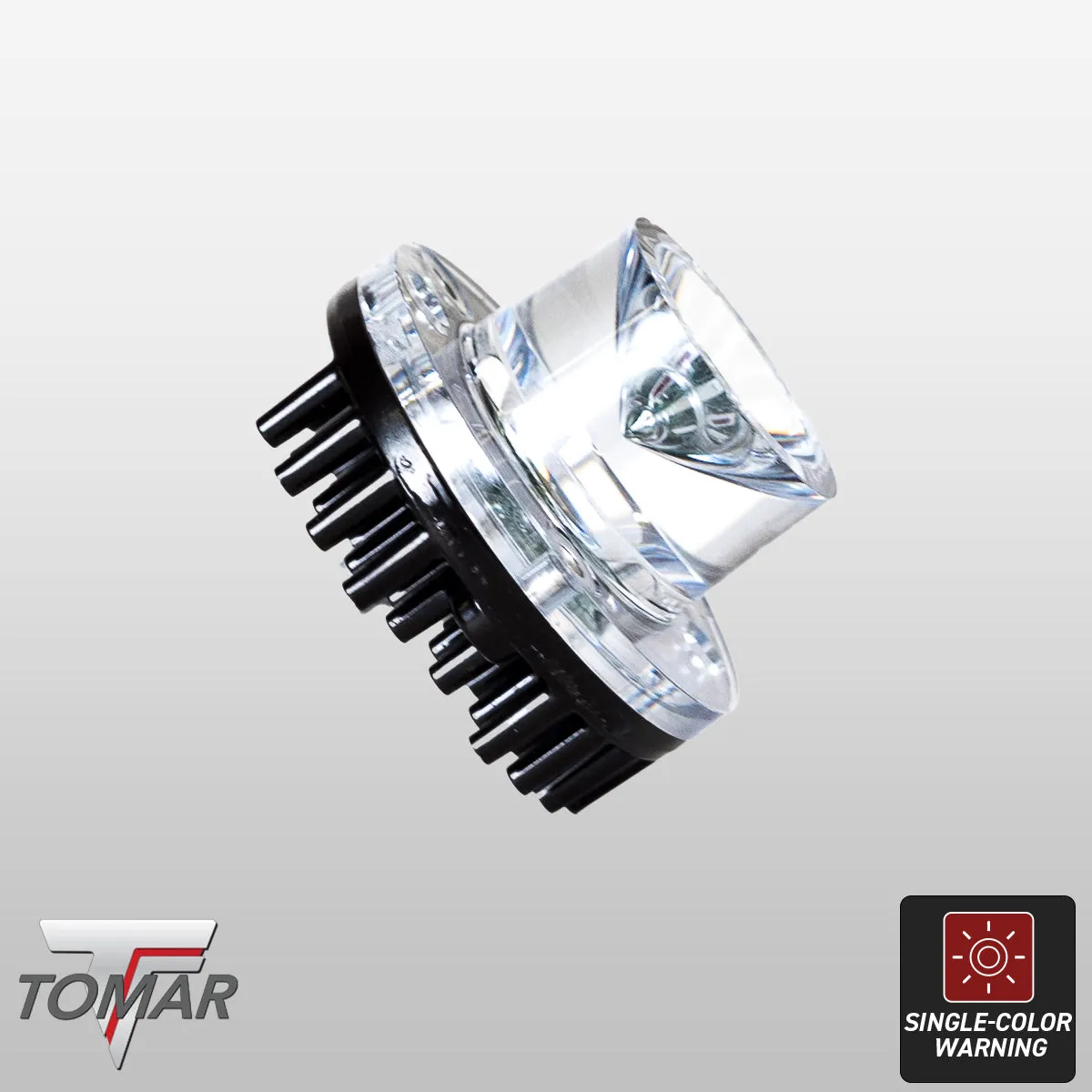

TOMAR’s Concealed LEDs provide the ultimate warning light performance for low-profile and unmarked emergency vehicles. The compact LED lamp assembly is custom mounted inside new style headlight and taillight composite housings.

The Concealed System features a high intensity LED lamp and a waterproof in-line control module. Each module is independently controllable, features multiple flash patterns, two modes of operation including a dimming feature, and can be synchronized with up to 10 other light modules.

KEY FEATURES

• Ultra-high intensity LED
• Multiple user selectable flash patterns
• Available in white, red, blue and amber LEDs

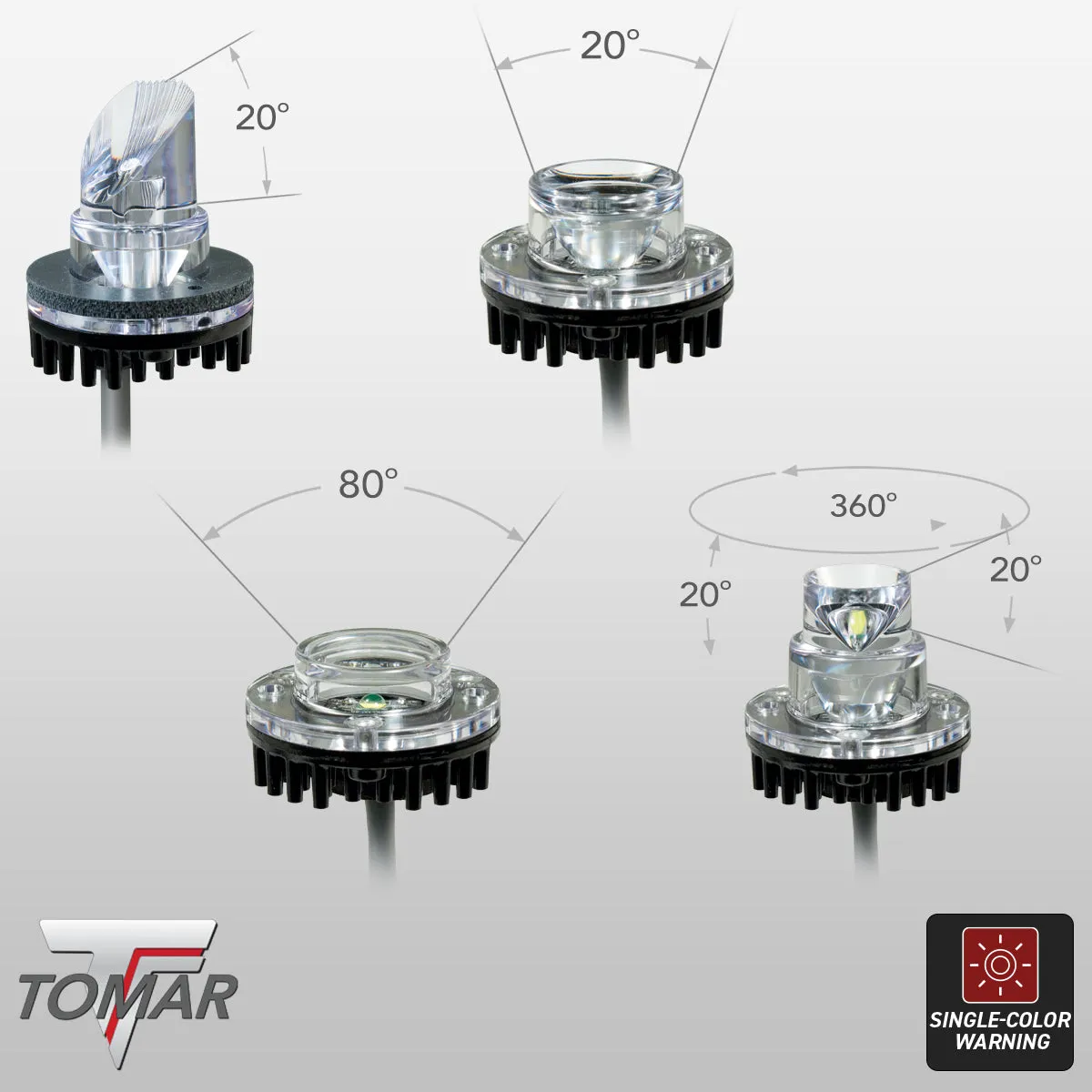

• Four different beam patterns available
• Rated IP67
• Five Year warranty

SPECS

• UC-LED dimensions - 1.5″ Dia x .5″ flange – 1.45″ optic (1″ hole)
• UC-LED20 dimensions - 1.5” Dia x .5” flange - .50” optic (1” hole)
• UC-LED80 dimensions - 1.5” Dia x .5” flange - .45” optic (1” hole)
• UC-LED360 dimensions - 1.5” Dia x .5” flange - .7” optic (1” hole)
• Input Current at 12Vdc - .5 a / 12Vdc
• Input Current at 24Vdc - .3 a / 24Vdc
• Input Voltage Range - 12/24Vdc
• Operating Temperature - -40°C to 70°C
