Product Details
＋
Hide-away LED Warning OR Illumination – TOMAR’s Concealable LED’s provide warning light or illumination for various applications from unmarked vehicles to off-road "rock" lights, to maritime craft marker lights. The low-profile system features 6 high-intensity LEDs with a waterproof in-line control module.

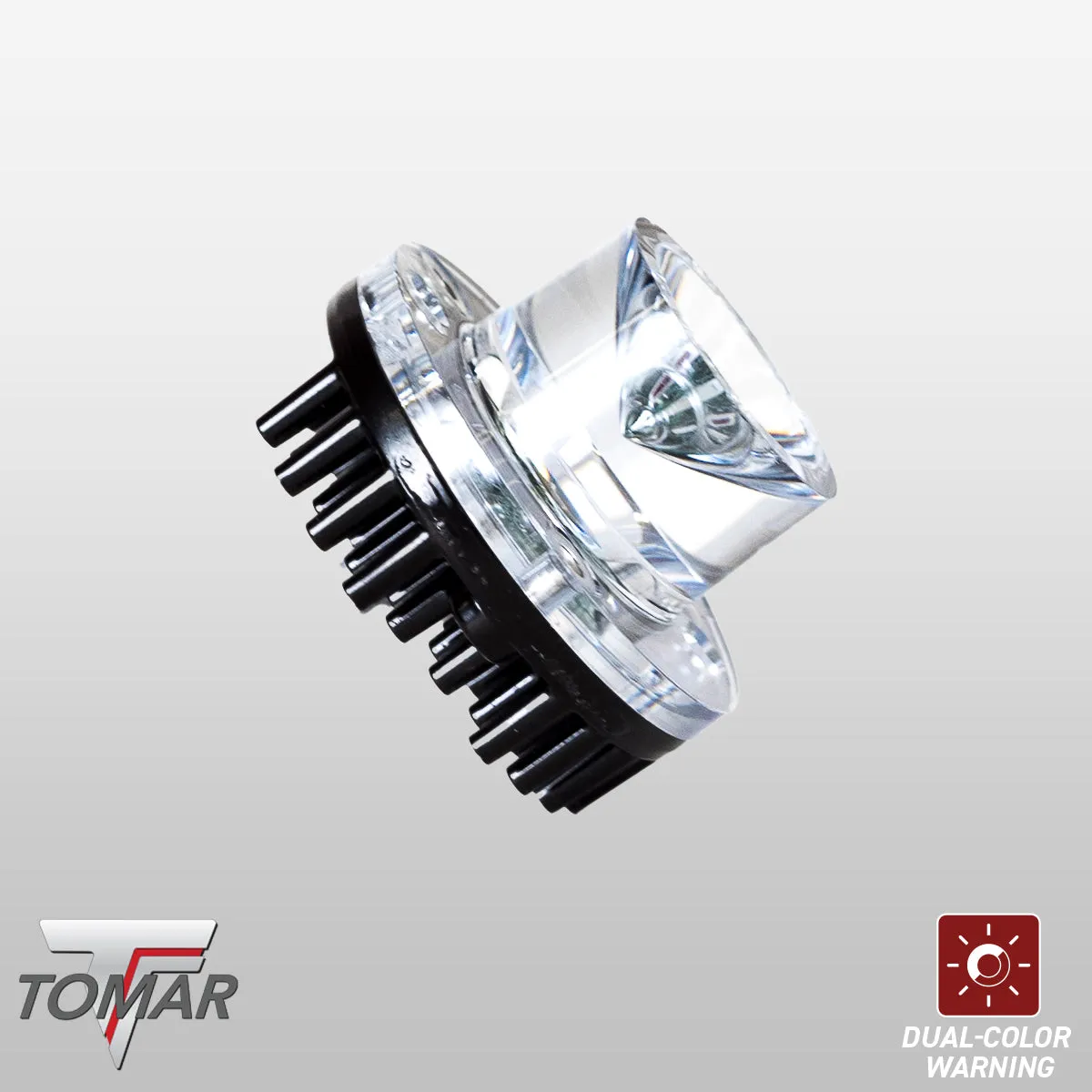

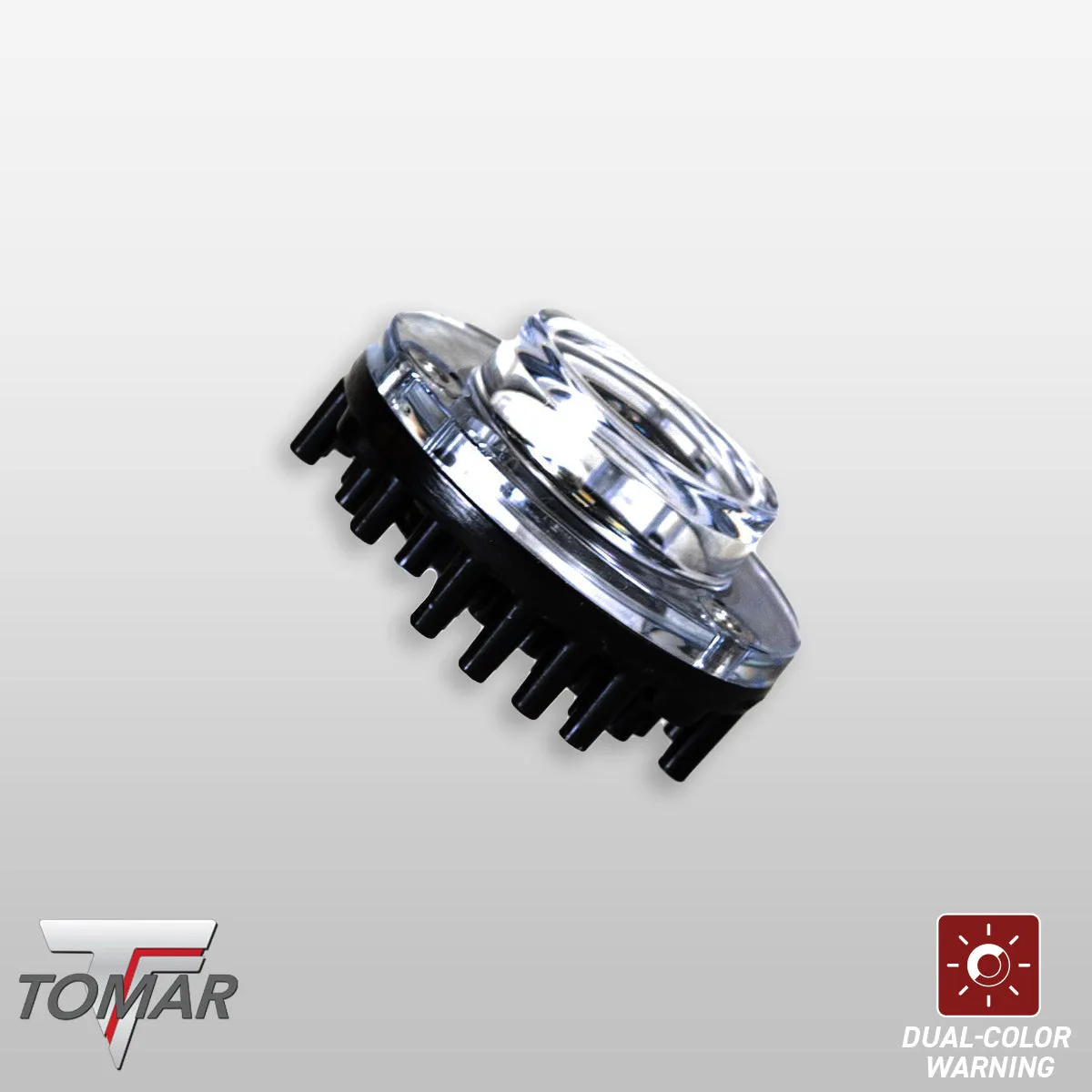

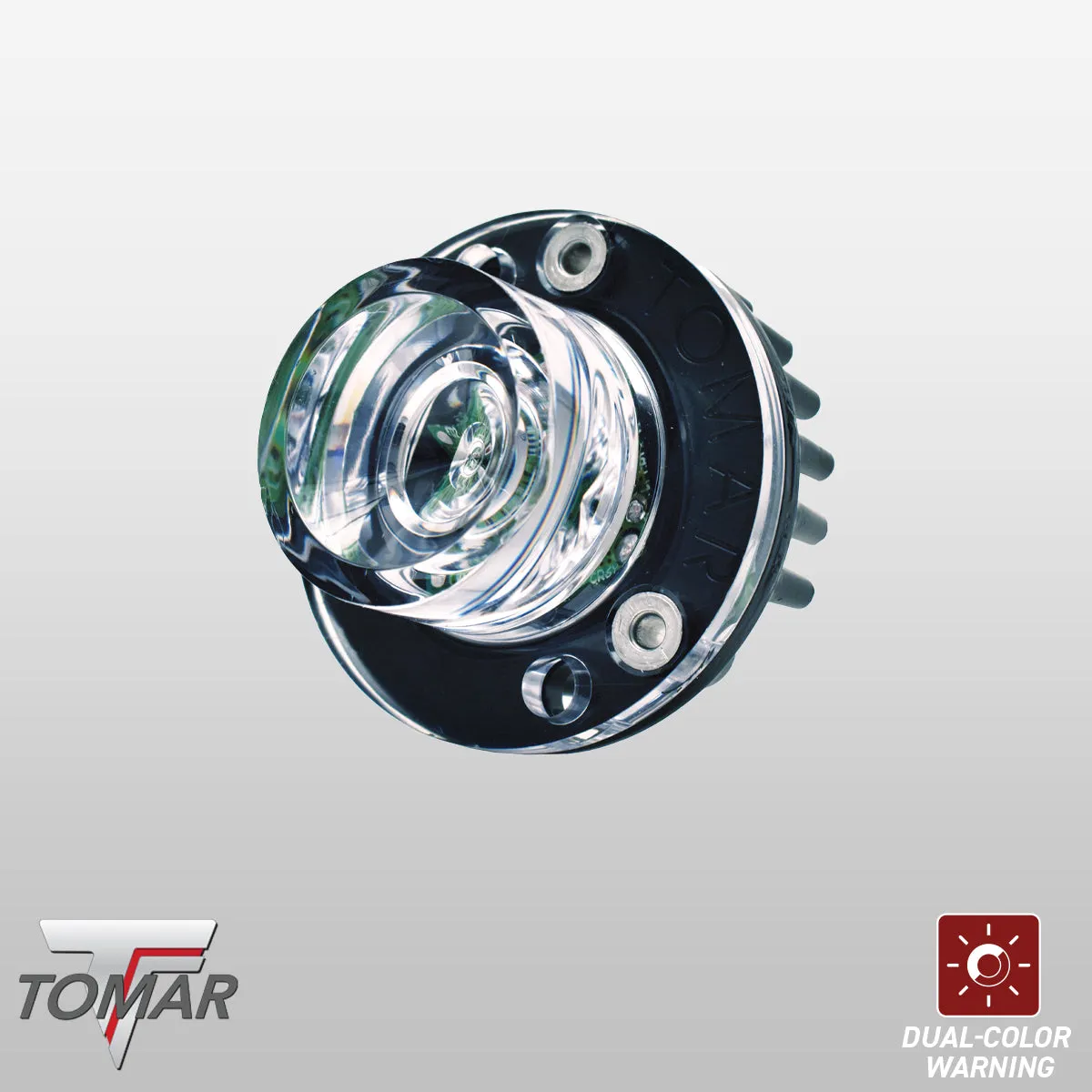

The UCD - TOMAR's Undercover LED Lamp with Dual-Color Capabilities
Each UCD is independently controllable, features multiple flash patterns with user selectable colors, 4 modes of operation, a dimming feature, and will synchronize with other light modules set to the same flash rate. Get BIG performance from a SMALL package with UCD!
KEY FEATURES
- Ultra-high intensity LEDs
- Multiple user selectable flash patterns
- 6 Single Color for high-intensity,
- Optional Alternating or Split 3/3 Dual-Color LEDs
- Available in red, blue, amber, green and white combinations

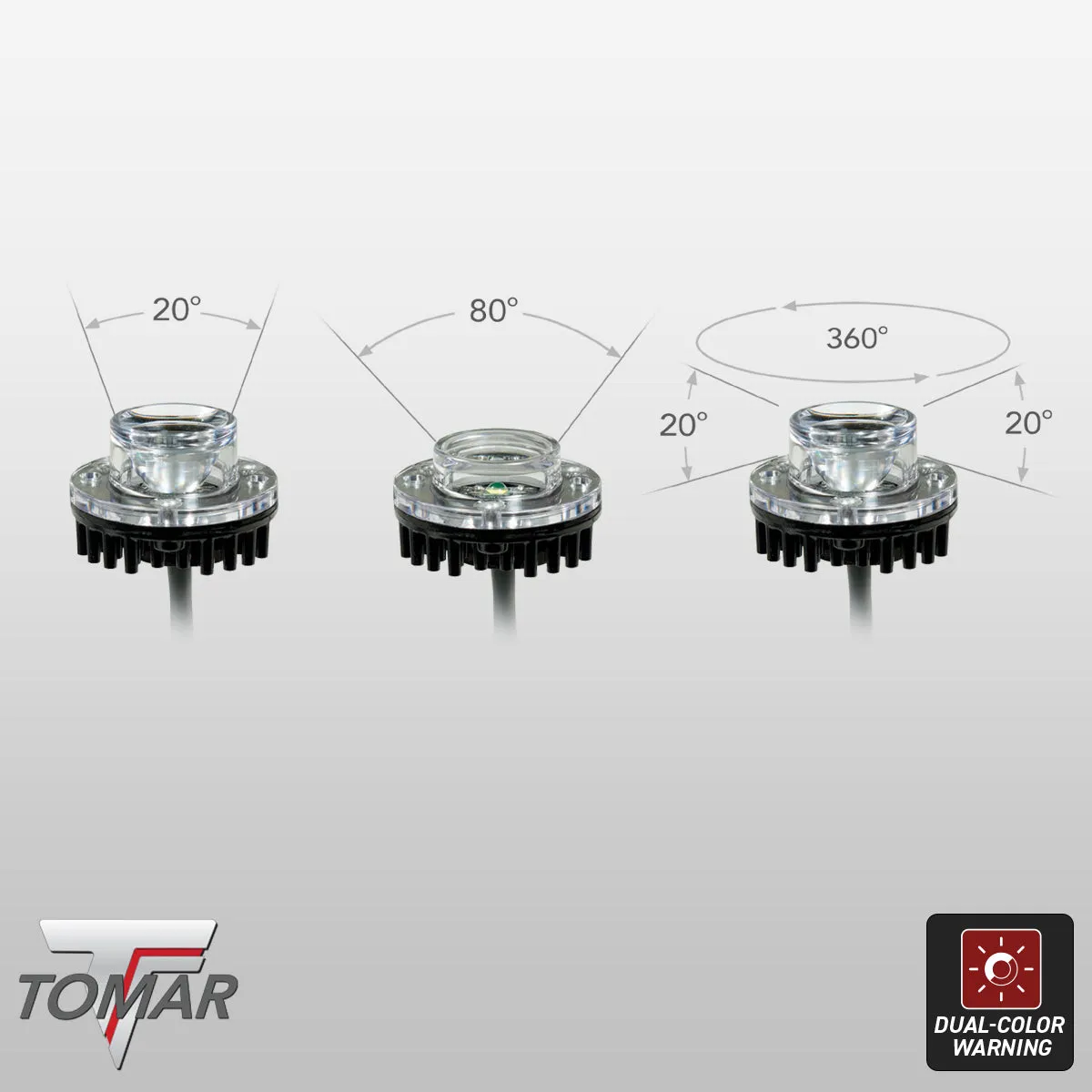

- Three optical choices for ideal light disbursement depending on application
- Rated IP67
- 5 year warranty
SPECS
- UCD-LED20 dimensions - 1.5” Dia x .5” flange - .50” optic (1” hole)
- UCD-LED80 dimensions - 1.5” Dia x .5” flange - .45” optic (1” hole)
- UCD-LED360 dimensions - 1.5” Dia x .5” flange - .7” optic (1” hole)
- Input Current at 12Vdc - .5 a / 12Vdc
- Input Current at 24Vdc - .3 a / 24Vdc
- Input Voltage Range - 12/24Vdc
- Operating Temperature - -40°C to 70°C
